Eco-friendly air technology solutions for a sustainable air environment.
Air Treatment
Based on extensive experience and excellent technical capability, we provide the most efficient and economical optimal design and operation technologies through consulting, on-site diagnosis, and establishing improvement measures to remove hazardous gases (SOx, NOx, VOCs, dioxin, odor, etc.).
Based on extensive experience and excellent technical capability, we provide the most efficient and economical optimal design and operation technologies through consulting, on-site diagnosis, and establishing improvement measures to remove hazardous gases (SOx, NOx, VOCs, dioxin, odor, etc.).
-
01

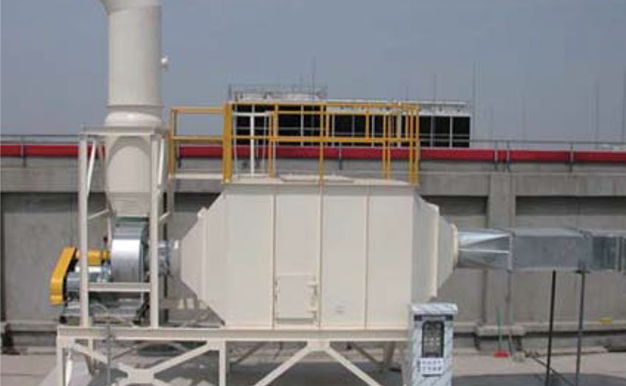

An All-In-One system that removes hazardous substances using the adsorption function of activated carbon and automatically regenerates activated carbon periodically inside the tower.
-
02
A groundbreaking new air activated carbon regeneration technology using superheated steam that enables easy maintenance and can significantly reduce operating costs.
-
03
As an eco-friendly regeneration technology, it solves environmental problems such as fugitive/acidic dust generated from activated carbon replacement, etc.
Comparison of air pollutant prevention facilities.
| Items & Facilities |
 Conventional adsorption tower (A/C TOWER) |
 A/C TOWER[W-SSCA] |
 BIO-FILTER |
 Regenerative Thermal Oxidizer (RTO) |
|---|---|---|---|---|
| Principle | Physical removal using A/C adsorption capacity |
|
|
|
| Target pollutants | VOCS, Odor, etc. | VOCS, Odor, etc. | VOCS, Odor, etc. | VOCS, Odor, etc. |
| Treatment efficiency | ≥ 99% | ≥ 99% | ≥ 99% | ≥ 99% |
| Features |
|
|
Weak in reducing high-concentration pollutants | Requires pre-/post-treatment equipment (cooling), etc. |
| Operation | Easy | Easy | Easy | Complex |
| Installation area | Medium | Small | Large | Large |
| Initial investment cost | 1.0 | 0.9 | 1.2 | 1.3 |
| Maintenance cost | 1.0 | 0.8 | 0.9 | 1.2 |
Comparison
-
General Equipment
Activated carbon adsorption equipment is widely used for removing air pollutants. A drawback is that maintenance costs increase and the required time increases due to activated carbon replacement, etc. Despite the advantage of high treatment efficiency, there are many constraints on application.
-
WINTEC GLOVIS Equipment
Our activated carbon adsorption equipment automatically regenerates activated carbon inside the tower. Maintenance costs are greatly reduced, and operation and management of the equipment are very easy.
-
Increase
Shortening
-
Increase
Reduction
-
Difficulty
Easy
